DEWALT

DEWALT 1/2-in 10 A Electric Hammerdrill

Article #00275406 Model #DWD520 Format1/2"x10A

Our stores will remain open for your essential needs. See COVID Restrictions. Details

L'article sera livré en bordure de trottoir en raison des restrictions de poids

Item will be delivered curbside due to weight restrictions

Shop power tool
batteries

Shop power tool
accessories

Description

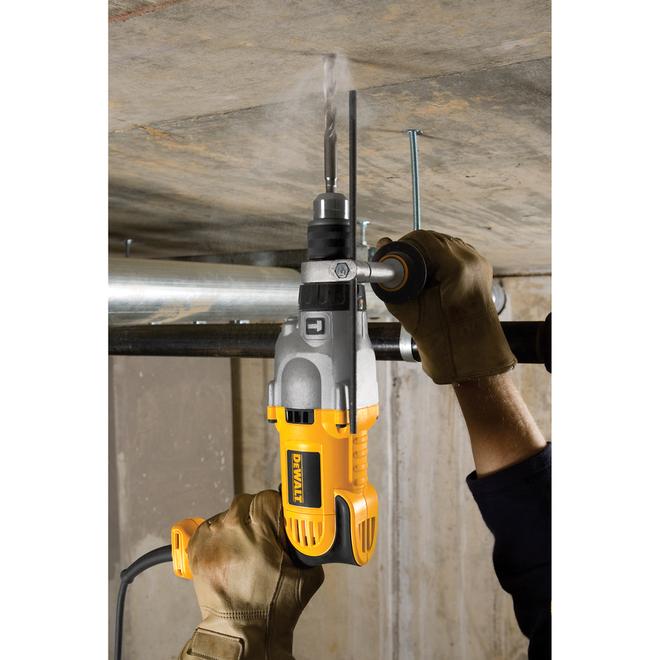

This hammerdrill is equipped with a 10-amp motor, which generates more power and an increased overload protection. Its dual mode (hammer drill/drill) makes it ideal for wood, steel or masonry applications. This hammerdrill features a two-finger trigger for increased comfort, a soft-grip handle, and a 360° locking side handle with soft grip for greater control and versatility. A 2-speed range allows for high-speed drilling or high-torque applications, while the metal gear housing ensures jobsite durability and increased reliability. Three-year limited warranty.

10-amp motor for masonry, wood and steel applications
1/2-in keyed chuck with strong bit retention
2-finger, variable-speed trigger (0-1,200/0-3,500-RPM) provides reliable control
360° locking side handle with soft grip offers greater control and versatility
6-lbs
8-Ft cord
3-Year base warranty
56,000-BPM impact mechanism

Technical specifications

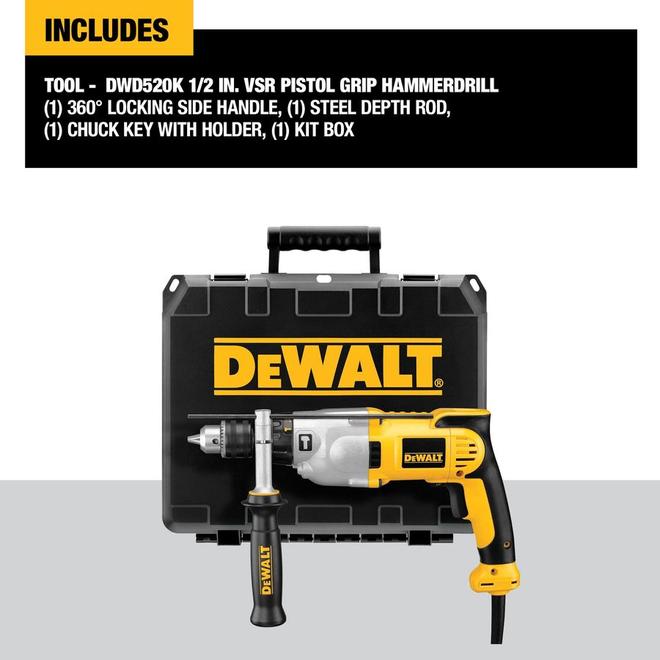

Accessories Included :Yes Amperage :10 App Compatibility :No Bare Tool :No Base Warranty Labor(Months) :36 Base Warranty Parts(Months) :36 Battery Amp Hours :0 Battery Recharge Time(Min) :0 Battery Type :N/A Battery Voltage :N/A Battery Warranty :N/A Bluetooth Compatibility :No Brushless :No Case Included :No Charger Included :No Chuck Type :Keyed Color/Finish Family :Yellow Cord Length(cm) :243.84 Cord Length(ft) :8.0 Cordless :No File/Certification Number :TBD Forward and Reverse Switch Included :Yes Maximum BPM :56000 Maximum Chuck Size :1/2-in Maximum RPM :56000 Number of Batteries Included :0 Number of Clutch Settings :0 Number of Speeds :2 Package Contents :360° Locking side handle, steel depth rod, chuck key with holder Safety Listing :CSA safety listing Settings :1.0000 Side Handle Included :Yes Smart Compatible :No Sub-Brand :N/A Tool Height(cm) :26.67 Tool Height(in) :10.50 Tool Height(mm) :266.7 Tool Length(cm) :35.56 Tool Length(in) :14 Tool Length(mm) :355.6 Tool Power Output :650 UWO Tool Warranty :3-year limited Tool Weight(kg) :2.7216 Tool Weight(lbs.) :6 Tool Width(cm) :8.255 Tool Width(in) :3.25 Tool Width(mm) :82.55 Variable Speed :Yes Variable Speed Trigger Included :No Warranty :3-year limited Wi-Fi Compatibility :No Works with Android :No Works with iOS :No

Frequently bought together

WOODS

Woods 12/3 Extension Cord 25' Yellow

Single Outlet Portable GFCI Adapter - 1800 W - 15 A

6-Outlet Power Bar with Surge Protection - 6' - Yellow

How do you take advantage of a price match online.

Asked by: Dom25dom25

DEWALT 1/2-in 10 A Electric Hammerdrill is rated 4.0 out of 5 by 125.

Rated 5 out of 5 by Restorations from Great product with lots of torque and versatility I marked it down on quality because brand new out of the box the variable speed did not work properly. On low speed you should be able to vary from 0-1,200 rpms. I got no action at all until the trigger was pushed about 1/2 way in at which time it would start at around 500 rpms and rev up from there. The rpms were way to fast for mixing sheetrock mud or paint. I exchanged the drill immediately and the new one is working perfectly so overall I gave it an excellent rating. This is a great drill with lots of torque and functionality. I happened to get a bad switch, so just be sure to check the variable speed functionality right away.

Date published: 2013-11-07

Rated 5 out of 5 by RAS from Great Drill ! I had a quantity of 226 holes to drill using a 3/16" bit into concrete. I have owned and/or used many other brands. This drill cuts through the concrete like it's butter! It actually performs as well as some of the much more expensive drills and way better than anything in it's class/price range. It makes the job so easy, because you don't have to lay into it with your body weight. It does the work almost by itself !! I would definitely recommend this drill to anyone.

Date published: 2011-04-18

Rated 1 out of 5 by DoingItRight from Only 1yr warranty after that you pay Dewalt makes an poor quality Hammer drill. 1) Burned out motor drilling a 2-1/4" hole with a hole saw. 2) Chuck key is horrible and never keys in tight- a knuckle buster. Opens constantly. DEWALT isn't what it use to be.. If you like disposable tools buy this one. Now I have to pay 1/2 the cost of the drill plus shipping to get it fix. Purchased a RIDGID hammer drill to replace this because as a contractor I have to have the tool. Ridgid has a Lifetime warranty on parts and labor so I won't have to buy another one or pay for a repair next time.

Date published: 2015-01-09

Rated 1 out of 5 by Novotny from The chuck is worthless I bought this drill because the Black and Decker hammer drill I have had for over 20 years finally crapped out. I bought this one to replace it. I have some screws to drill into some concrete this weekend and I had 1 hole to drill into a brick to mount an A/C pullout disconnect. I started to drill the brick for my mounting hardware and every time I pulled the bit back out of the hole to remove the dust, the bit fell out. It did this repeatedly and after the 5th time I was glad I had the hole deep enough to mount my box. I have done home projects and been a Machinist for over 40 40 years and this is the most worthless drill chuck I have ever dealt with in my life! I am taking it back and replacing it with a Bosch, Milwaukee, Rigid or anything that isn't a DeWalt!

Date published: 2016-10-12

Rated 3 out of 5 by David from Good hammer drill but not at max capacity I purchased this hammer drill to install iron fence around my pool. The fence post were welded to base plates drilled for 1/2 inch anchor bolts. I needed to drill 80 holes through 4 inch thick concrete (I through drill so bolt can be pounded down into the dirt and a new bolt inserted in the hole if there is a problem). When it was working, it worked great. But, the gearbox heated up fast and after 50 holes drilled over a three day period, the gearbox really overheated, the gearbox grease oozed out and the gearbox shelled. I think this hammer drill would be good if drilling smaller holes, say 3/8 inch or less. But it does not have the backbone to stand up to its max capacity of 1/2". I learned my lesson and returned this hammer drill and purchased a rotary hammer instead.

Date published: 2011-12-26

Rated 5 out of 5 by Annex Designs from Great Drill Recommended Amazing drill. Drilled 8 6 1/2 in deep holes with 7/16 drill bit at an airport. Airport concrete is a bit more tough than residential and it went through it like cheese. Awesome will recommend to others.

Date published: 2011-06-01

Rated 5 out of 5 by KGKOZ from Great Drill / Great Price I had to install a commercial steel door/steel frame. I knew I had 8 - 3/8 holes to drill. one side was into block, the other a brick wall. Figured I better get a drill with strength. My 15yr old 1/2in 3amp Craftsman seen its days. All of these holes had to be 4in deep. I drilled 1/4in pilot holes first then switched to the 3/8 bit. This drill ate the job up. Had all 8 holes drilled in 20min. couldn't believe it! Fastest I ever drilled through block/brick. Will enjoy not dread future jobs of concrete drilling. Tip; Drilling over 1/4in especially brick, a pilot hole is wise.

Date published: 2011-04-18

Rated 1 out of 5 by Harty from Smoking Motor Using concrete to make our own concrete countertops. Mixing in a 5-gal bucket with a 1/2" paddle. Mixing to the concrete specifications, and even a little wetter for easier mixing. Sept 2014 used a 7-amp corded drill (Skil maybe?) and it started to smoke after mixing about the 4th bucket. The thinking that a 7-amp isn't robust enough, and maybe a better, trusted brand would work better. April 2015 purchased this DeWalt 10-amp drill. It started smoking on the FIRST bucket we mixed. The performance was even worse than the cheaper, weaker model. This drill was the "best" that Lowes in Shakopee had on the shelf.

Date published: 2015-04-06
